PK65
Peripheral, PK Series
7/10 HP Peripheral Impeller Pump
230-460V, Three Phase, 60Hz
230-460V, Three Phase, 60Hz
Product Features:
Designed to transfer clean water free from abrasive particles and liquids that will not damage the pump’s components. Reliable, easy to operate, and cost-effective. It is ideal for domestic applications, specifically for gardens and orchards, in combination with small autoclave tanks.Technical Documentation

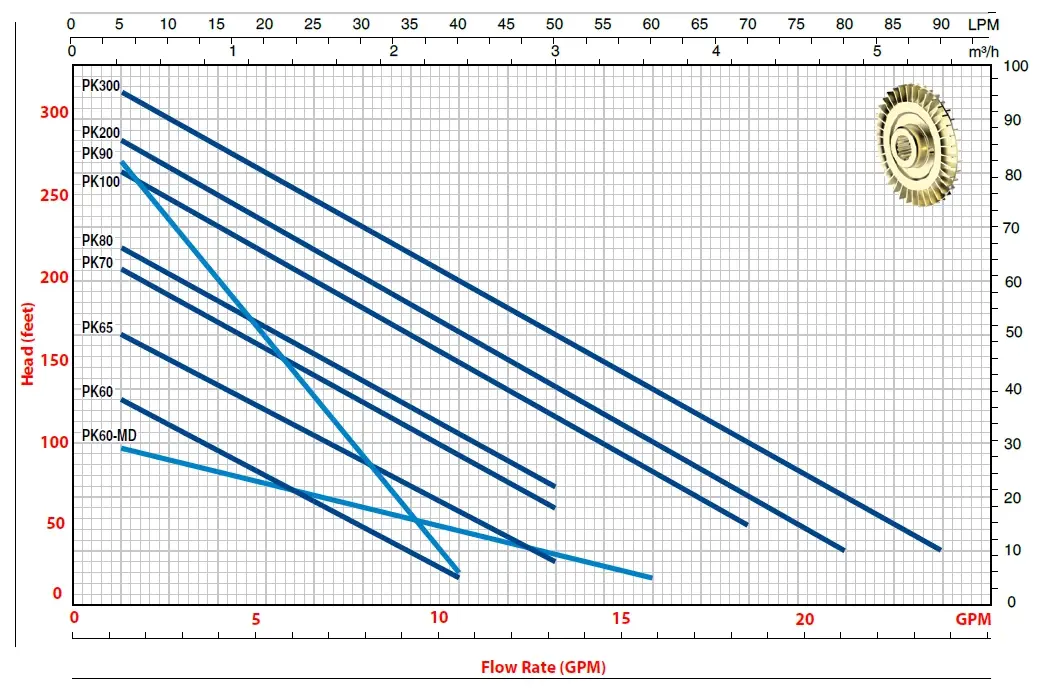

Performance:
- Performance: Flow Rate Up To 13.2 GPM
- Performance: Head Up To 131 Ft.
Technical Specifications:
- Three Phase
- Amps 3.2 A / 2.0 A
- Frequency 60 Hz
- HP 7/10 HP
- Protection IP X4
- Supply Voltage 230V / 460V
Product Specifications:
- Ambient Temperature 104°F-122°F
- Continuous Duty Rating S1
- Liquid Temperature 14°F-140°F
- Maximum Working Pressure 87 psi
- Operating Position Vertical
- Warranty 2 Year Limited
Construction Characteristics:
- Bearings 6201 ZZ / 6201 ZZ
- Capacitor EN-60252-1/A1
- Electric Motor three-phase 220/380 V - 60 Hz or 230/460 V - 60 Hz.
- Impeller Brass with peripheral radial vanes
- Mechanical Seal AR-12 - Ceramic with Graphite Rotational Ring
- Motor Bracket Aluminium with brass insert (patented), reduces the risk of impeller seizure
- Motor Shaft Stainless steel AISI 431 (EN 10088-3 - 1.4104 for PK 60, PK 60-MD, PK 65)
- Pump Body Cast iron, with threaded ports in compliance with ISO 228/1 (PK 60, PK 60-MD with an Epoxy Electro Coating treatment)
